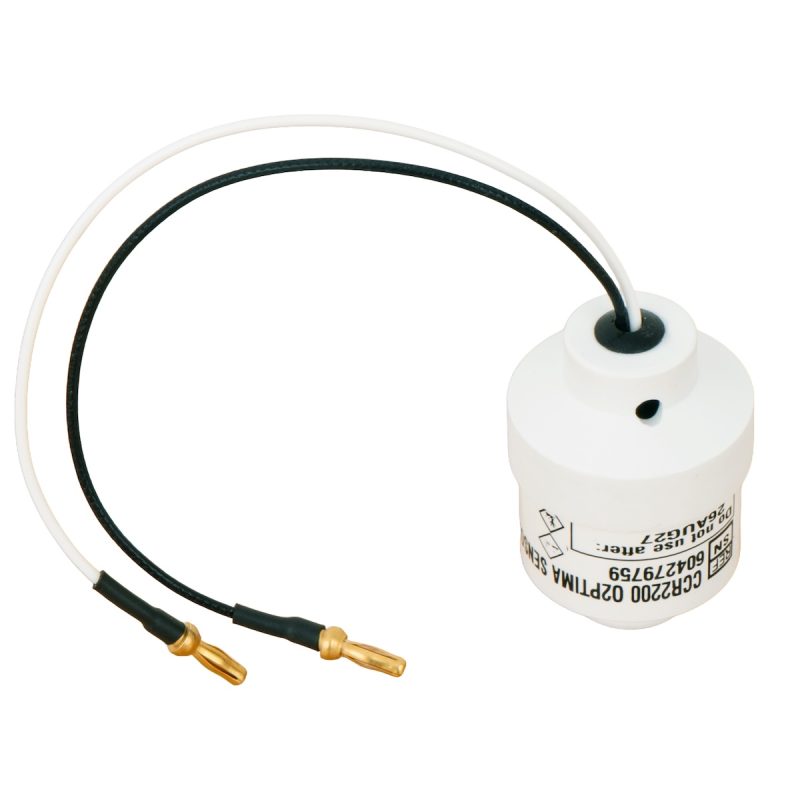

Oxygen Sensor
Know what you’re breathing.
Any O2ptima rebreather uses four oxygen sensors. These sensors are threaded into the sensor disk mounted inside the electronics head. Dive Rite uses Analytical Industries, Inc. type R22D sensors.
$99.00
Availability: In stock
SKU
CCR2200
CCR2200
TECH SPECS
- Measuring Range: 0-100%
- Accuracy: +/-2% of Full Scale
- Signal Output: 8.5-14 mV
- Linearity: +/-2% of Full Scale
- Response: T90 6 sec
- Temperature: Coefficient Compensated
- Operating Temperature: 0 to 45°C
- Recommended Storage: 0 to 25°C
- Qualified at: 1.8 ATA
- Shelf Life: 6 months
- Shelf Life in Use: 12 months or expiration date (whichever comes first)
- Humidity: Non-condensing 0-99% RH
- Warranty: 12 months*
- Electrical: Conn 3 Pin Molex
*WARRANTY INFO
- Prepare screenshots of the failed sensors reading in Air and O2, and a screenshot of unit calibration history. Provide photos of the sensor showing the serial number, end of life date, the condition of the Molex pins, and sensing face. Advise Dive Rite of installation date and expected 12-month expiration date. Note: End of Life date includes 12 months of use and 6 months of shelf life
- Visit https://diverite.com/rma-form/ to create a return request for the sensor and attach the photos to the RMA. THIS SHEET MUST BE RETAINED AND WILL BE REQUIRED FOR ANY WARRANTY CLAIMS
